DFUN Real-time Battery Health Monitoring
DFUN offers innovative new-age Battery Monitoring System for monitoring performance of each linked battery by collecting real-time data on important parameters such as voltage, charge and discharge currents, battery internal resistance, individual battery temperature, State of Charge (SOC), and State of Health (SOH).
Key Features:
- Plug-and-Play installation: With features like Auto-sensing of battery sensor ID.
- Real-time Data: Real-time monitoring with multiple levels of alarms and functionality.
- Multi-level Alarms: Flexible alarms and warning features delivered via SMS and E-mail.
- Enhanced Safety & Performance: Helps enhance battery system performance through Auto-balancing.
- Multipurpose Functionality: Suitable for Ni-Cd, Lead-Acid, and multi-pole batteries at DC power systems.
- Advanced Features: POE, advanced cell balancing, battery leakage monitoring, ambient temperature & humidity measurement.

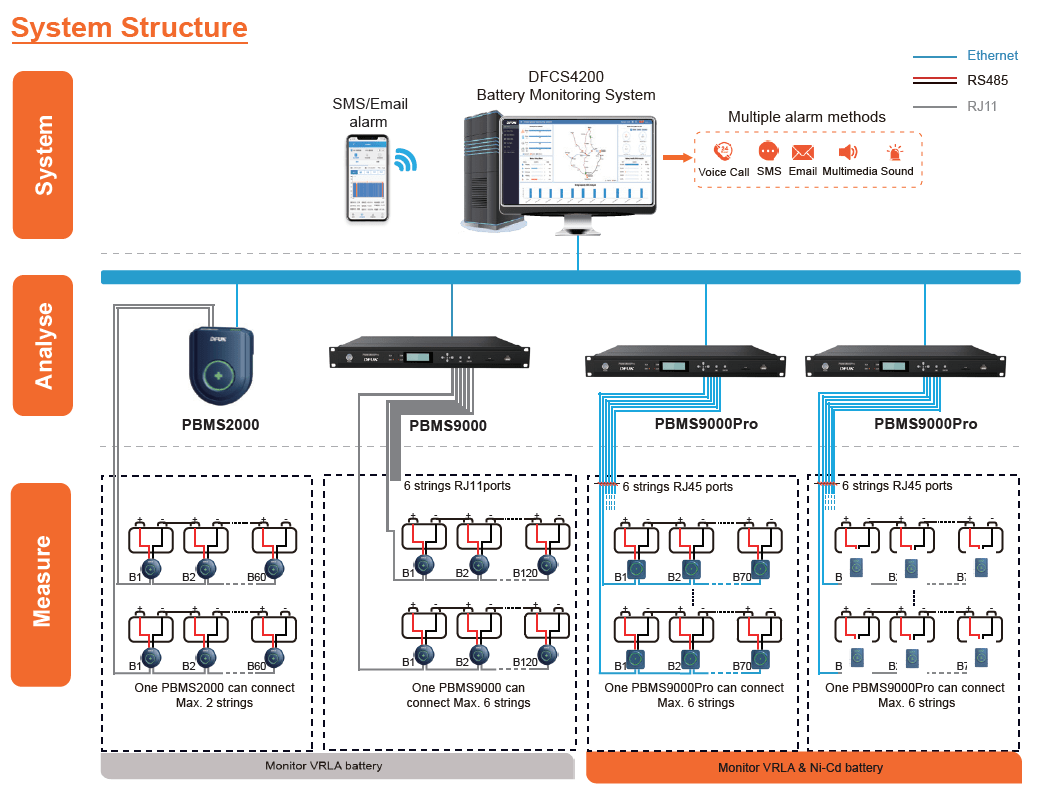

System Architecture
System Structure
Solutions
Valve Regulated Lead Acid & Ni-cd BMS Solution
DFUN Lead-Acid Battery Monitoring Solution supports 2V, 6V and 12V valve regulated lead acid batteries.
Learn More →Flooded Lead Acid BMS Solution
DFUN Flooded Lead-Acid Battery Monitoring Solution supports the supervision of 2V and 12V FLA batteries.
Learn More →DFCS4200 Centralized Battery Monitoring Software
DFCS4200 is specialized software developed in-house by DFUN to monitor the status and control settings.
Learn More →Product Summary

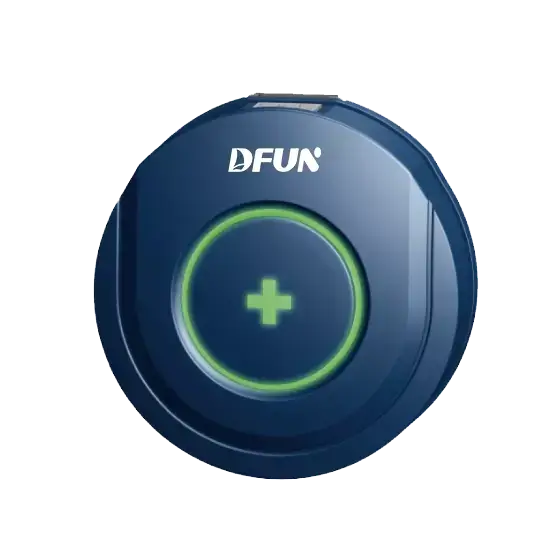

PBMS2000
PBMS2000is specially designed as highly integrated smart sensor module for VRLA batteries
Features
- Dedicated design for telecommunication 24V or -48V system.
- 24/7 hours on-line monitoring & remote alarm.
- Cost competitive solution, support Max. 1 string, total 120pcs batteries, or Max. 2 strings, Max. 60pcs batteries each string.
- Measure Lead-Acid battery.
- Multi communication protocol (Modbus-RTU, MODBUS-TCP, SNMP)
- Comply with IEEE 1188-2005.

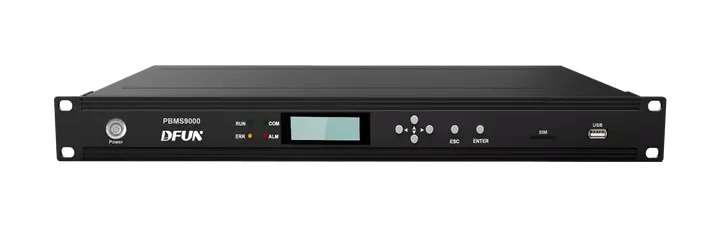

PBMS9000
PBMS9000 integrated into the feature of the embedded web page, historical data storage, multiple data upload, USB data backup, dual-source etc.
Features:
- 24/7 hours on-line monitoring & remote alarms notification.
- Measure lead-acid or multi-pole battery.
- Ring communication, any communication failure will not affect other sensors communication.
- Monitor battery voltage, current, impedance, insulation resistance, ripple current & voltage, SOC, SOH, etc.
- Support Modbus, SNMP, MQTT and IEC61850 protocols.
- Auto-sensing for the battery sensor's ID address.
- Dual-source to avoid power shutdown.
- Anti-interference design, support to connect with high-frequency UPS.
- Comply with IEEE 1188-2005.

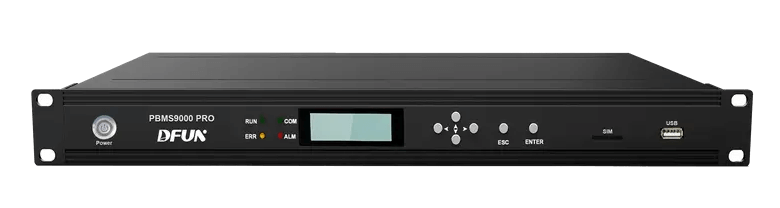

PBMS9000PRO
PBMS9000PRO ro can be used to online monitoring of various battery banks. Allows automation of battery detection and failure anticipation detection
Features
- 24/7 online monitoring & remote alarm notifications.
- Monitor Max. 6 strings and 420pcs batteries in total .
- Measure Ni-Cad, Lead-Acid, and muti-pole battery .
- Anti-interference design, support to connect with high-frequency UPS .
- Anti-reverse protection, no damaging the cell sensor and battery .
- Support monitoring battery leakage and liquid level (optional) .
- Support extension sensor for measuring ambient temperature & humidity, leakage current, insulation resistance (optional) .
- Comply with IEEE 1188-2005 .

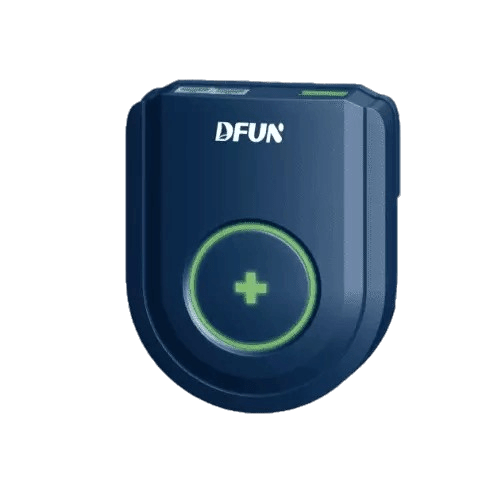

PBAT 61
PBAT 61 Designed to support 2V, 6V, and 12V lead-acid batteries, PBAT61 offers comprehensive online monitoring capabilities. It enables real-time tracking of each battery cell’s voltage, internal resistance, and negative terminal temperature.
Features:
- PBAT61-02 for 2V battery, PBAT61-06 for 6V battery, PBAT61-12 for 12V battery .
- Monitor individual battery voltage, internal temperature (negative pole), .Impedance(ohmic value) .
- Ring communication, any communication failure will not affect other sensors communication.
- Auto-balancing .
- Measure lead-acid battery .

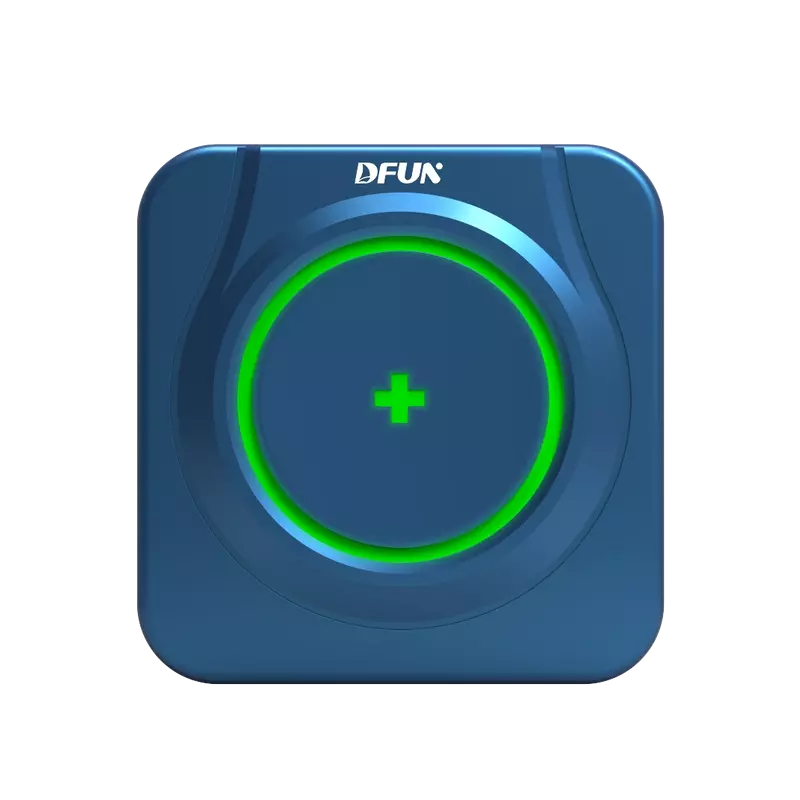

PBAT 71
PBAT 71 Battery Monitoring Cell Sensor offers an advanced monitoring solution with its specialized models – PBAT71-02 for 2V and 1.2V batteries and PBAT71-12 for 12V batteries.
Features
- PBAT71-02 for 2V Lead-Acid battery or 1.2V Ni-Cd battery.
- PBAT71-12 for 12V Lead-Acid battery .
- Monitor individual battery voltage, internal temperature (negative pole), impedance (ohmic value) .
- Calculate individual battery state of charge (SOC), state of health (SOH) .
- Support battery leakage and liquid level monitoring (optional) .
- Powered by communication bus, no consuming battery power .
- Auto-balancing.

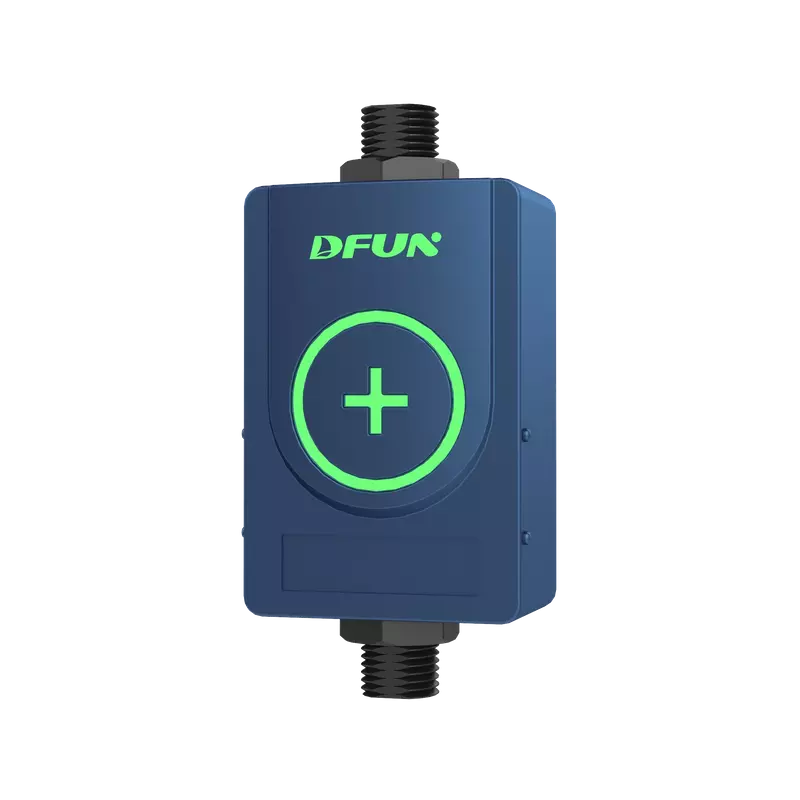

PBAT 81
PBAT 81 Advanced evolution of battery monitoring technology,offers precision in monitoring a wider array of battery types and configurations. Ideal for comprehensive, efficient, and adaptable battery monitoring solution.
Features:
- PBAT81-02 for 2V lead-acid battery or 1.2V Ni-cad battery.
- PBAT81-12 for 12V lead-acid battery.
- Monitor individual battery voltage, internal temperature (negative pole), .impedance(ohmic value).
- Auto-balancing.
- IP65 protection degree.
- UL94-HB-V0 fire rating.
- Powered by communication bus, no draw any power from the batteries.

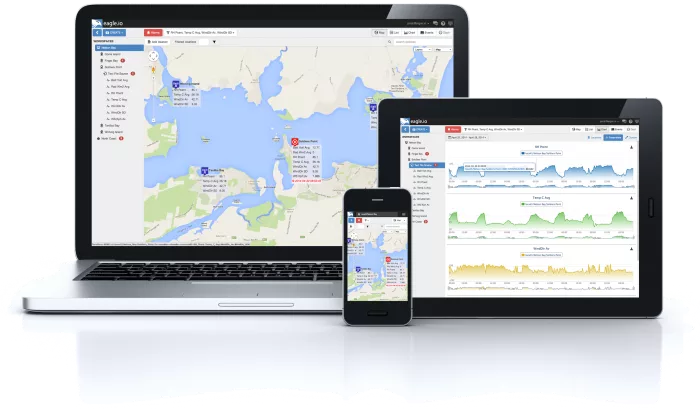

DSCS4200 Battery Monitoring Software
DFCS4200 is specialized software developed in-house by DFUN to monitor the status and control settings for all battery strings and battery room environment. This system enables users to monitor their batteries in multiple stations from system level data to individual battery data. It enables user to view the real-time data, battery historical data, generating battery report, collect real time alarms &alerts and historical alarms via a single platform. It can be configured on cloud server where users are able to monitor their battery conditions anytime anywhere via MQTT protocols.
Features
- 24/7/365 real-time monitoring .
- 50,000pcs batteries.
- B/S structure with simple UI set-up.
- Realize all data display at one location, suitable for projects by large number of batteries or batteries locate in different site.
- Sent out timely alarm notifications for abnormal battery via SMS & Email alerts (support multiple contacts).
- Setpoint multi-level alarm.
- Graphical and visual display of battery trends and faults.
- Provides centralized data storage, data access and data management, export .csv format reports for data analysis.
- Monitor ambient temperature & humidity.
- Support to connect with 3rd party system (EMS, EPC, SCADA, DCIM...) .
